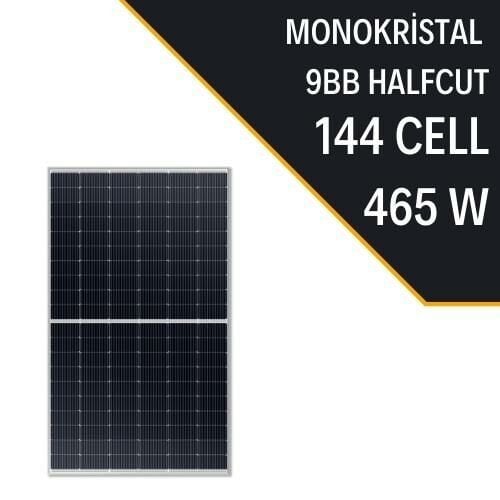

465W Half-Cut Monocrystalline Solar Panel

The LEXRON LXR-465M 465W Half-Cut Monocrystalline Solar Panel is a high-efficiency module engineered for residential, commercial, and industrial solar installations. Featuring 144 half-cut cells and 9 busbar technology, it delivers superior performance, reduced power loss, and enhanced durability under standard test conditions.

Electrical Specifications:

• Rated Power: 465W
• Cell Type: Monocrystalline (Half-Cut, 9BB)
• Cell Count: 144
• Open Circuit Voltage (Voc): 51.00V
• Maximum Power Voltage (Vmp): 42.50V
• Short Circuit Current (Isc): 11.54A
• Maximum Power Current (Imp): 10.94A
• Maximum System Voltage: 1500V

Mechanical Specifications:

• Module Dimensions: 2096 × 1039 × 35 mm
• Weight: 24 kg
• Standard Test Conditions: AM=1.5, E=1000W/m², Tc=25°C

Certifications:

• CE
• IEC

Key Features:

• Half-cut cell design for lower internal resistance
• 9BB technology for improved current collection
• High power output with compact footprint
• Ideal for rooftop and ground-mounted systems
• Certified for safety, performance, and durability
