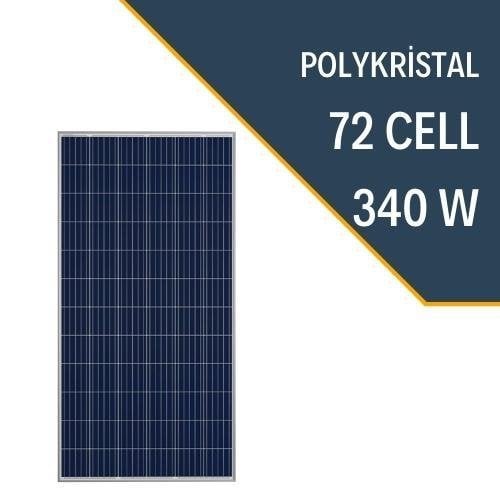

340W Polycrystalline Solar Panel

The LEXRON LXR-340P 340W Polycrystalline Solar Panel is a high-capacity module designed for residential, commercial, and agricultural solar installations. With 72 durable cells and CE/IEC certifications, it delivers stable performance and long-term reliability under standard test conditions.

Electrical Specifications:

• Rated Power: 340W
• Cell Count: 72
• Open Circuit Voltage (Voc): 46.20V
• Maximum Power Voltage (Vmp): 38.50V
• Short Circuit Current (Isc): 9.32A
• Maximum Power Current (Imp): 8.83A
• Maximum System Voltage: 1000V

Mechanical Specifications:

• Module Dimensions: 1987 × 1004 × 35 mm
• Weight: 23 kg
• Standard Test Conditions: AM=1.5, E=1000W/m², Tc=25°C

Certifications:

• CE
• IEC

Key Features:

• High-output polycrystalline cell technology
• Robust frame for outdoor and rooftop installations
• Ideal for grid-tied and off-grid solar systems
• Certified for safety, durability, and performance
